It came. Out of the muck of Crim Dell...

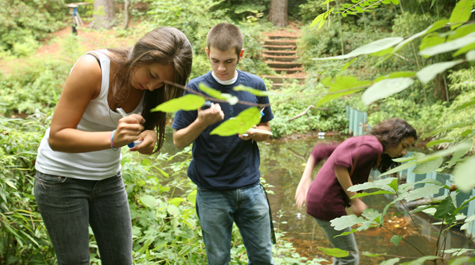

Researchers in the Dell Working in early September at the upper end of Crim Dell, freshman researchers (from left) Kasi Hartman, Sam Harvey and Moni Del Toral take samples of soil and muck. One of the samples yielded what early indications seem to be a new strain of phage. photo by Stephen Salpukas
Small, but important, marker Sample sites are marked by small tags on a toothpick, in case phage hunters need to return to the exact spot where a sample was taken previously. photo by Stephen Salpukas

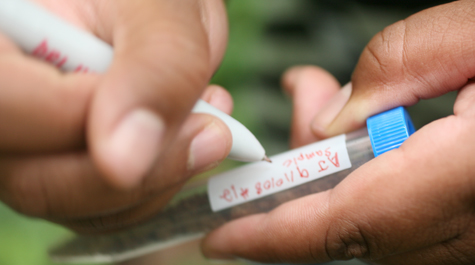

In the tube Bacteriophage live in the dirt and the water, so students collect dirt samples, labeling each carefully and noting the exact location of each sample by GPS. photo by Stephen Salpukas
Lab work Learning basic lab techniques, freshmen (from left) Shartania Askew, Carolina Ruiz and Alexandra Nunes, use a buffer solution to isolate phage during the seminar’s first semester. photo by Stephen Salpukas
Preparing to work in silico Students in the phage seminar prepare to download sophisticated genetic analysis software. Much of the work on the phage genome will be done “in silico”—on a computer. photo by Joseph McClain
Charting the course Biologist Margaret Saha (standing) tells freshmen in the phage seminar that the spring semester will add a more intensive, computer-based, bioinformatics component to their study of Crim D and other bacteriophages. photo by Joseph McClain

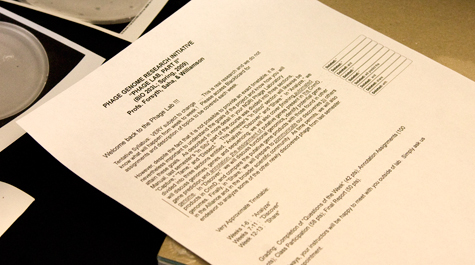

Big goals/small syllabus Research follows its own path, consequently the syllabus for the phage seminar's fall semester is only half a page. "If you have a long, detailed syllabus, then you're not doing real research," Margaret Saha told the students on the first day of the semester. photo by Joseph McClain
Down to business Biologist Mark Forsythe (center) calls attention to the screen to begin the explanation of how students will use in silico techniques to process fragments of the Crim D genome. photo by Joseph McClain
Photo - of -
The organism, a strain of bacteriophage, was found in the muck of campus landmark Crim Dell, so the students agreed to name it CrimD. The lead scientists in this research-oriented freshman laboratory are Margaret Saha, Mark Forsyth and Kurt Williamson, all members of the biology department. This project is sponsored by the Science Education Alliance of the Howard Hughes Medical Institute. The HHMI initiative organizes groups of freshmen at 12 select colleges into two-semester research courses on the genetics of organisms known as phages or bacteriophages, viruses that infect bacteria.
The seminar collected and processed soil samples in the fall semester of 2008, hunting for phages—particularly novel ones. Using state-of-the-art lab techniques, the William & Mary freshmen isolated phages and prepared the DNA of the samples for sequencing—or genetic blueprinting—at Los Alamos National Lab. (See related story to learn why phage study is important.)
Preliminary results from Los Alamos indicate that one of the 10 phage samples sent from William and Mary is a novel strain, previously unrecorded.
“Well, it looks like it’s new,” Williamson said. “But it could still be highly related to something else and not be brand new completely.” The freshman phage seminar began the spring semester by applying various research techniques to verify the genome of CrimD.
“Right now we have what’s known as a draft,” said Forsyth. “We have the finished genome, but we don’t have it quite assembled yet.”
He explained that the Los Alamos draft contains all the units of the genome in three contiguous parts. The genome contains the order in which the four building blocks of DNA—adenine, thymine, cytosine and guanine—are arranged in couplets known as base pairs, which make up the rungs of the spiral DNA ladder.
Saha said that preliminary examination has revealed that CrimD is in a family of phages whose genomes have 80 thousand to 90 thousand base pairs. By comparison, the genome of the specific bacterium that Crim D infects consists of four million base pairs, Forsyth explained. The human genome consists of some three billion base pairs.
“One of the first things the students will do is to analyze the data to identify weak spots,” Williamson said. “In other words, there are points in this genome that have been sequenced a fewer number of times. Typically you want ‘8x coverage,’ so each region of the genome is sequenced eight times and at least seven of those eight times need to agree.”
The students will use various techniques to get the genome in proper order and to address CrimD’s weak spots, segments of 300 to 400 base pairs that didn’t make the 8x cut at Los Alamos. The weak segments will be examined using techniques such as the polymerase chain reaction, a DNA amplification tool common in molecular biology labs. All members of the phage seminar are beginning to use state-of-the-art bioinformatics software supplied through HHMI to process the CrimD genome in silico.
“There’s in vivo and in vitro, which everybody knows,” Saha explained. “In silico is becoming much more commonly used to describe things done on a silicon chip in a computer, rather at the lab bench.” Saha, William & Mary’s Chancellor Professor of Biology, said that the sheer amount of data in even small virus-sized genomes makes in silico bioinformatics techniques necessary in today’s research labs.
“You absolutely need computer computational power to analyze and make sense of these hundreds of thousands of bases and how they fit together or don’t fit together to make up proteins and form genes,” she said. “This can’t be done easily by the human mind, but the computer programs make all the possible combinations and come up with the best series of alignments. This happens in microseconds. Then, of course, we have to curate that and look at it to make sure it makes biological sense. This is the way biology is going in the 21st Century. If you’re not comfortable with computers and the programs and analysis, it’s going to be more and more difficult to do modern biology.”
At some point in the semester’s work, the freshmen phage seminar will learn for sure if CrimD is a variant of a known bacteriophage, or if it is a novel phage, previously unknown to science. Either way, their work is important, not just as a learning experience, but as authentic, discovery-oriented research, contributing to scientific knowledge.
“So little is known about bacteriophage, and the diversity is overwhelming,” WIlliamson said. “This could give us a lot of information about selection, evolution, diversity—information that just doesn’t exist right now.” Phages infect bacteria, which makes the viruses of great interest in the biomedical research community as potential alternatives to antibiotics.
Saha said that although she expects the students to prove that CrimD is a new phage, they may not recognize the moment of proof when it arrives.
“The problem with science is that there’s rarely this ‘eureka’ moment,” Saha said. “It’s gradual. By the time you get to what should be your eureka, you realize that there was no one moment where you don’t know, then one where you do know.”
